ABB Customer Unit - Mistral

ABB Customer Unit - Mistral



Efficiency, safety, integration: the new System pro E comfort MISTRAL65 series rests on the strengths which have consolidated ABB's image over the years for its expertise and reliability in the area of products for protection, control, monitoring, measurement, safety and energy efficiency.
These innovative IP65 rated consumer units complete ABB's wide product range for the industrial sector. The result of constant research and constant attention paid to technological development, the System pro E comfort MISTRAL65 series consumer units are designed to satisfy all requirements electrical installers might have.

The new range of System pro E comfort MISTRAL65 consumer units allows almost any type of electrical distribution system to be implemented in industrial, commercial and residential environments. The consumer units are manufactured in a halogen-free thermoplastic which is completely recyclable.

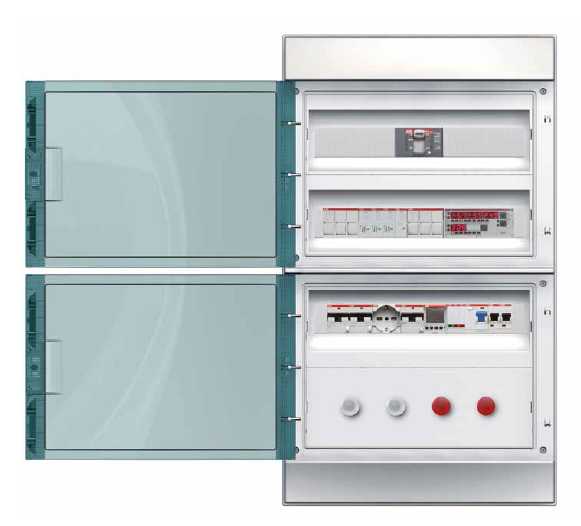

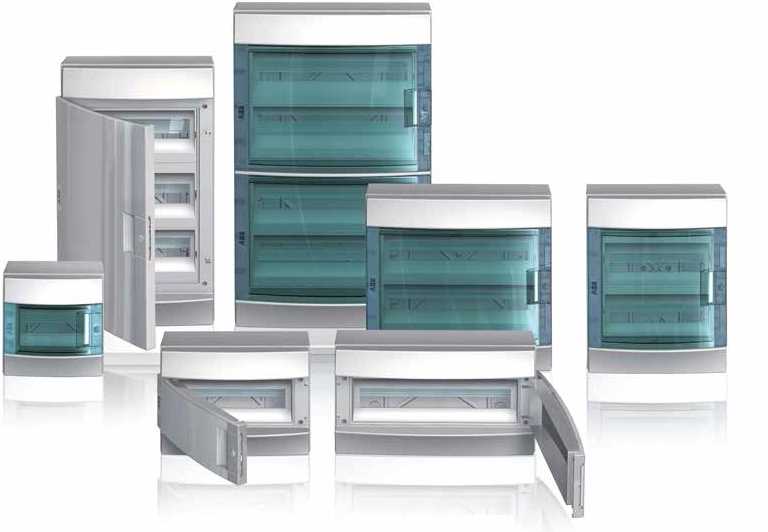

The range includes solutions with transparent or opaque doors which open up to 180°, and a choice of between 4 and 72 modules, meeting the most recent regulatory requirements and ensuring an enormous variety of application types are covered.
The refined design is marked by some particular characteristics, for example the perfect symmetry, which allows either the whole consumer unit or just the front panel to be rotated, easily changing the door opening side.
In the multi-row versions, the centre distance of the DIN rails can be varied from 150 mm to 125 mm, further increasing the versatility of the product and using the same standard accessories.

- Thermoplastic material, self-extinguishing and resistant to heat and fire up to 650°C

- Resistance to most chemical agents, UV proof

- Shock resistance 6 Joule (IK level 08)

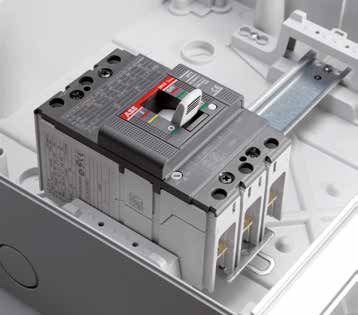

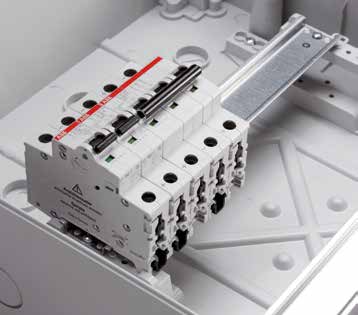

- Possibility of installing MCB and most DIN rail mounted components, MCCB up to 125A, pilot devices, etc.



Technical Details

Compliance with standards IEC60670 - EN60439-3
Rated current In up to 125 A
Degree of protection IP 65



Available Sizes on stock

Modules

Size WxHxD [mm]

4 152x202x117
8 232x250x154
12 320x250x155
18 430x250x155
24 320x435x155
Many other sizes available on request, also flush mounted version (IP41 only)



Please contact us for any questions, more information, or price inquiries.
