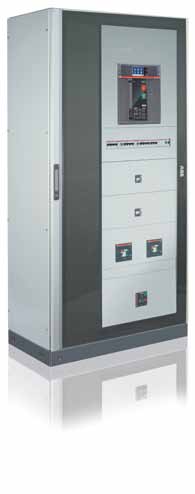

ABB Distribution Board - Pro E power

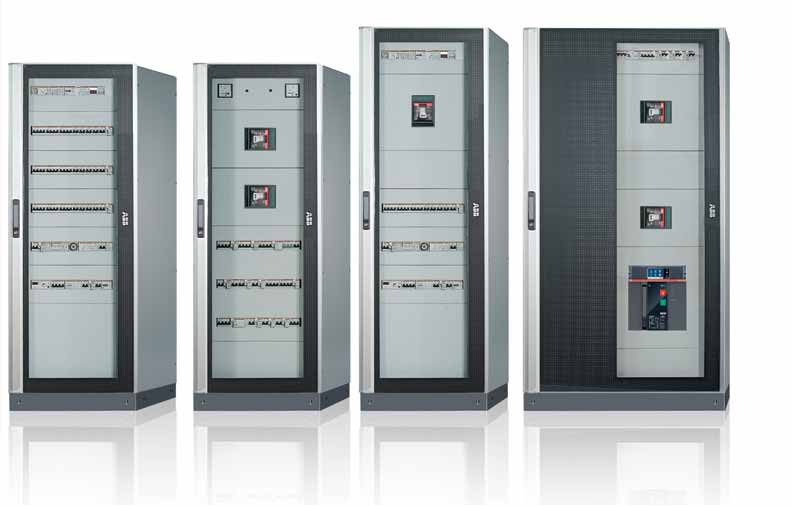

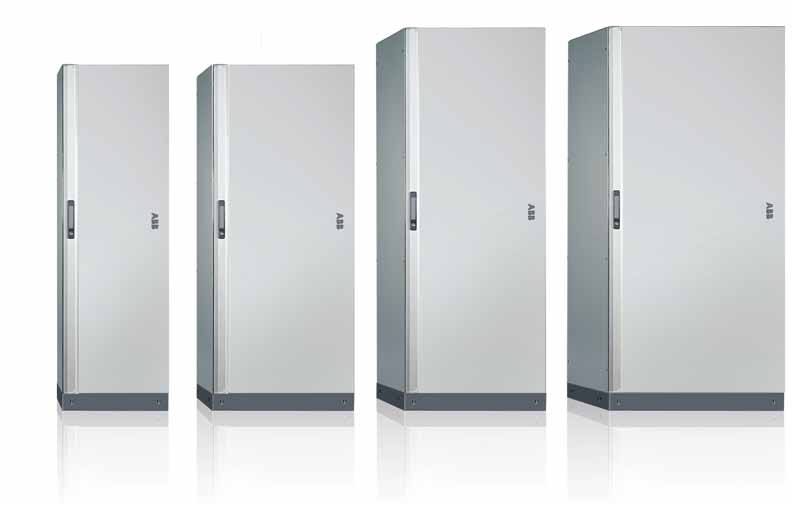

System pro E Power is the pioneering new main distribution switchboard solution from ABB: rated current up to 6300A and short-circuit current up to 120kV allow the system to meet all plant requirements depending on the type of installation, required protection class and the electrical and mechanical
specifications.

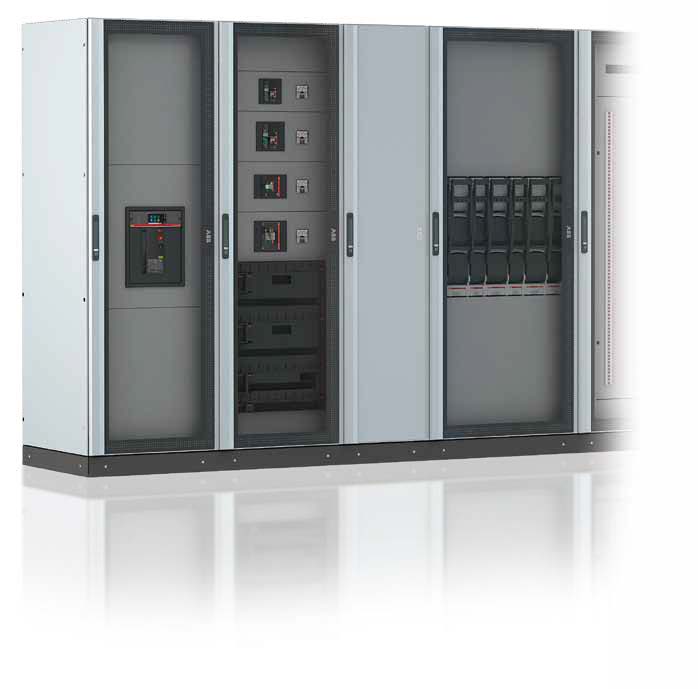

ABB’s new System pro E Power switchboard provides a complete solution for electric power main distribution in infrastructures and industries that complies with the standards, and functions in perfect synergy with all the other ABB low voltage apparatus, such as System pro M modular circuitbreakers, Tmax T and XT moulded-case circuit-breakers and Emax 2 air circuit-breakers.
All ABB’s devices can be installed in this switchboard since a full range of accessories ensures that all components are perfectly compatible with each other, with extremely easy assembly and wiring operations.

System pro E Power is the market’s new benchmark. It redefines the concept of excellence and performance for distribution switchboards.
Just further confirmation of ABB’s tradition, experience and standing as leader of the electric power and energy distribution market.
If flexibility, velocity and simplicity are what you’re looking for, then this new main distribution switchboard is the right choice for your electrical system.



Technical Details

Compliance with standards IEC 60439-1-2
Rated service voltage Ue up to 1000V AC - 1500V DC
Rated insulation voltage Ui up to 1000V AC - 1500V DC
Rated frequency 50-60 Hz
Rated impulse withstand voltage Uimp 12 kV
Rated current In up to 6300 A
Rated short-time short-circuit withstand current Icw up to 120 kA
Rated peak short-circuit current Ipk up to 264 kA
Degree of protection IP 30, 31, 40, 41, 65
  depending on configuration
