ABB MCCB Panel Board - Mirage

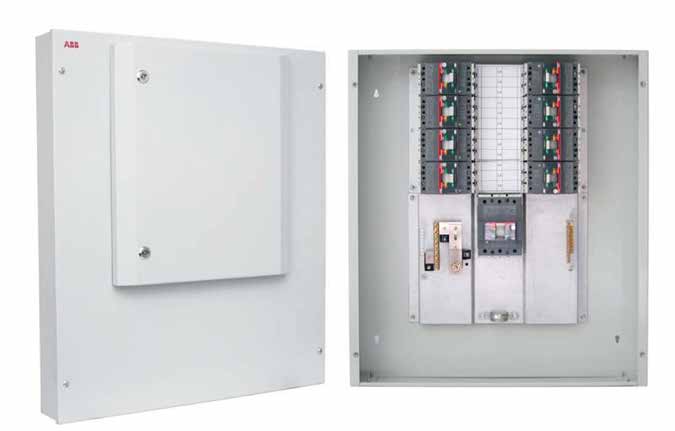

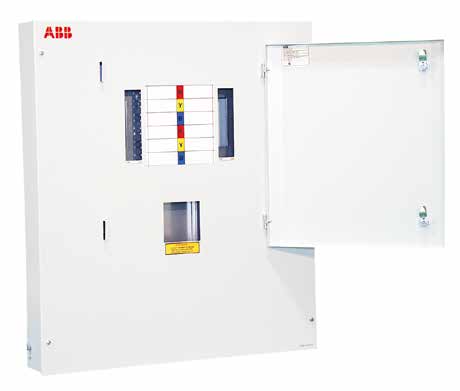

The Mirage type tested MCCB panel boards have been designed for easy handling and quick, simple installation for the electrical contractor. Compact MCCB design ensures maximum cabling area within the enclosures.
Removable top & bottom gland plates are provided for ease of installation and cabling. The removal of these also allows for fitting of additional items such as top and bottom extension boxes, plinths and metering panels.
Technical Details
| Compliance with standards | IEC 60439-1&2 |
| Rated service voltage Ue | up to 690 V |
| Rated insulation voltage Ui | up to 1000 V |
| Rated frequency | 50-60 Hz |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated current In | up to 630 A |
| Rated short-time short-circuit withstand current Icw | up to 50 kA |
| Rated peak short-circuit current Ipk | up to 105 kA |
| Degree of protection IP | 42 |
We have on stock various models with ABB Tmax T3 or T5 incomer, and ABB Tmax T1 and T3 outgoers.
Please contact us for any questions, more information, or price inquiries.
