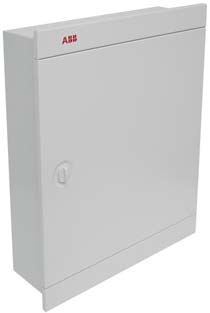

ABB Compact Distribution Board - Mini Center



Mini Center compact distribution boards, a design aimed for safety, reliability and availability in the electrical building installation. Available in busbar (TPN) and multi row types.
Flush or surface mounted.

Kit for incoming device has to purchased separately for busbar (TPN) type. Available incomers: 3-pole MCB, 3-pole MCCB, 3-pole isolator, 4-pole RCCB.

Top extension box for DIN-rail or back plate mounting available.



Technical Details

Compliance with standards IEC 439- 3 & BS 60439 part 1 & 3
Rated service voltage Ue up to 400 V
Rated frequency 50-60 Hz
Rated current In up to 100 A row type, up to 160/250A TPN type
Rated short-time short-circuit withstand current Icw up to 35 kA
Degree of protection IP 42





Available Sizes multi row type (flush H&W +20mm)

Rows

Size WxHxD [mm]

Max. no. DIN modules
1 320x420x132 20
2 540x420x132 32
3 690x420x132 48
4 840x420x132 68
larger sizes available on request



Available Sizes TPN busbar type (flush H&W +20mm)

Ways

Size WxHxD [mm]

Max. no. DIN modules
4 540x420x132 12
6 600x420x132 18
8 650x420x132 24
12 758x420x132 36
larger sizes available on request



Please contact us for any questions, more information, or price inquiries.
