Contactors
Bati Service is keeping the following ABB contactor models regularly on stock:

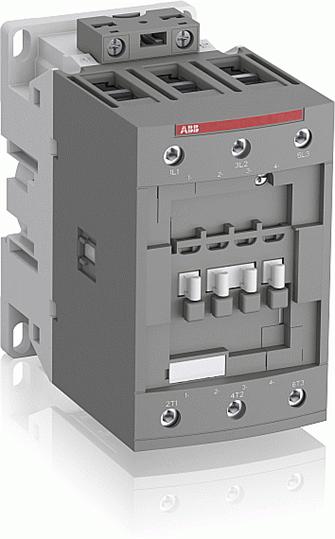

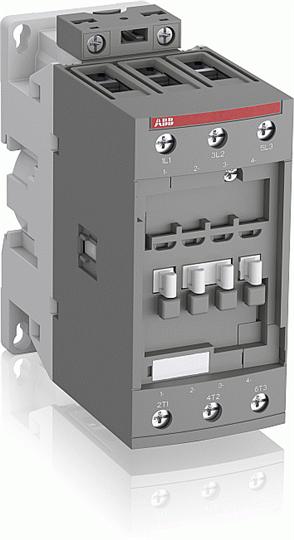

3-pole standard block contactors:
Contactor type | AC1 rating | AC3 rating |

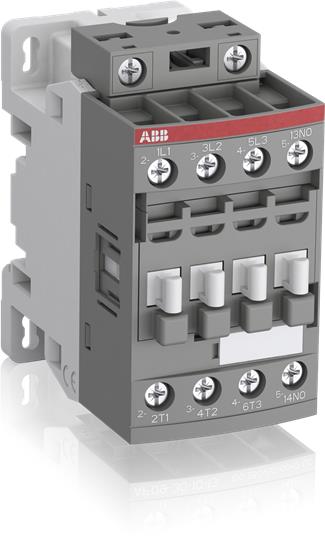

AF09-30-10-13 | 25A | 9A, 4kW |
AF12-30-10-13 | 28A | 12A, 5.5kW |
AF16-30-10-13 | 30A | 18A, 7.5kW |
AF26-30-00-13 | 45A | 26A, 11kW |
AF30-30-00-13 | 50A | 32A, 15kW |
AF38-30-00-13 | 50A | 38A, 18.5kW |
AF40-30-00-13 | 70A | 40A, 18.5kW |
AF52-30-00-13 | 100A | 53A, 22kW |
AF65-30-00-13 | 105A | 65A, 30kW |
AF80-30-00-13 | 125A | 80A, 37kW |
AF96-30-00-13 | 130A | 96A, 45kW |
AF116-30-00-13 | 160A | 116A, 55kW |
AF146-30-00-13 | 225A | 146A, 75kW |
AF190-30-00-13 | 275A | 190A, 90kW |

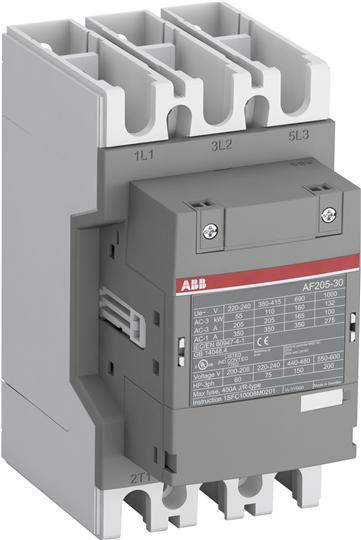

AF205-30-00-13 | 350A | 205A, 110kW |
AF265-30-00-13 | 400A | 264A, 132kW |
4-pole standard block contactors:
Contactor type | AC1 rating |
AF09-40-00-13 | 25A |
AF16-40-00-13 | 30A |
AF26-40-00-13 | 45A |
AF38-40-00-13 | 55A |
AF40-40-00-13 | 70A |
AF52-40-00-13 | 100A |
AF80-40-00-13 | 125A |
AF116-40-00-13 | 160A |
AF140-40-00-13 | 200A |
AF190-40-00-13 | 275A |
AF205-40-00-13 | 350A |
AF265-40-00-13 | 400A |
AF305-40-00-13 | 500A |

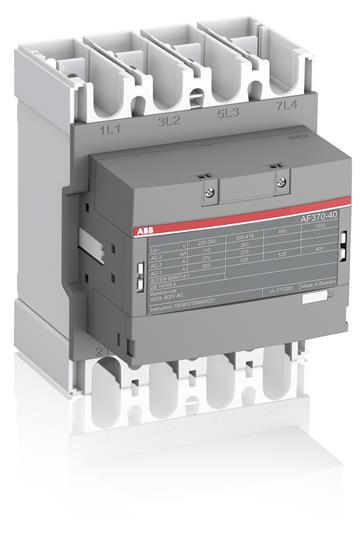

AF370-40-00-13 | 525A |
EK 550-40-11 | 800A |

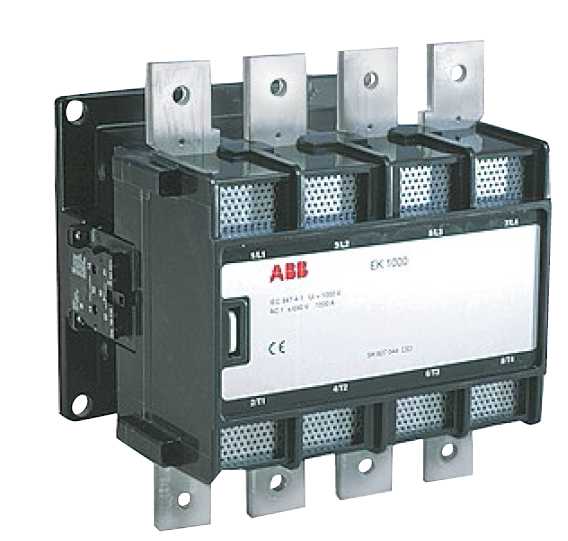

EK 1000-40-11 | 1000A |
Contactors for capacitor switching:
Contactor type | Rated op. power |

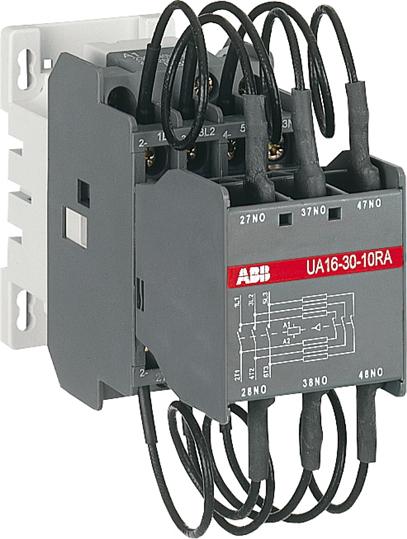

UA16-30-10RA | 12 kvar |
UA26-30-10RA | 22 kvar |
UA30-30-10RA | 30 kvar |
UA50-30-00RA | 40 kvar |

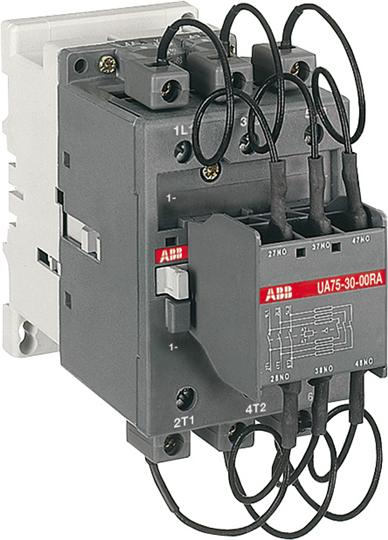

UA75-30-00RA | 60 kvar |
UA95-30-00RA | 70 kvar |
Contactor relays:
NF22E-13 |
All AF- and NF contactors have a coil voltage range of 100-250V AC/DC. AF9-30 - AF38-30 we have also in 20-60V DC / 24-60V AC. Other voltages are available on request.
Further we have the most common accessories:
- Auxiliary contacts
- Interlocks

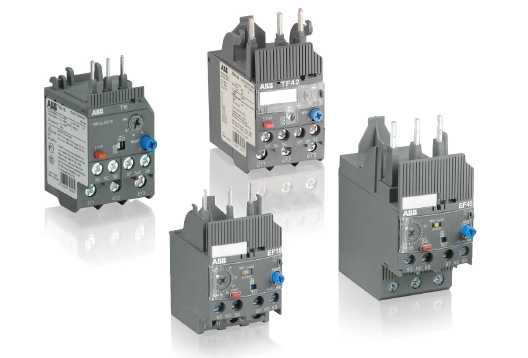

- Thermal overload relays ranged 0.13A - 310A
ABB has replaced the A-series and most of the EK-series contactors with the new AF-range. This one has several advantages like wide electronic coil with wide voltage range, inbuilt surge protection and lower price. But on special request we can still supply the old models.
Please contact us for any questions, more information, or price inquiries. Download the catalogue, we can order the whole program from ABB for you.
